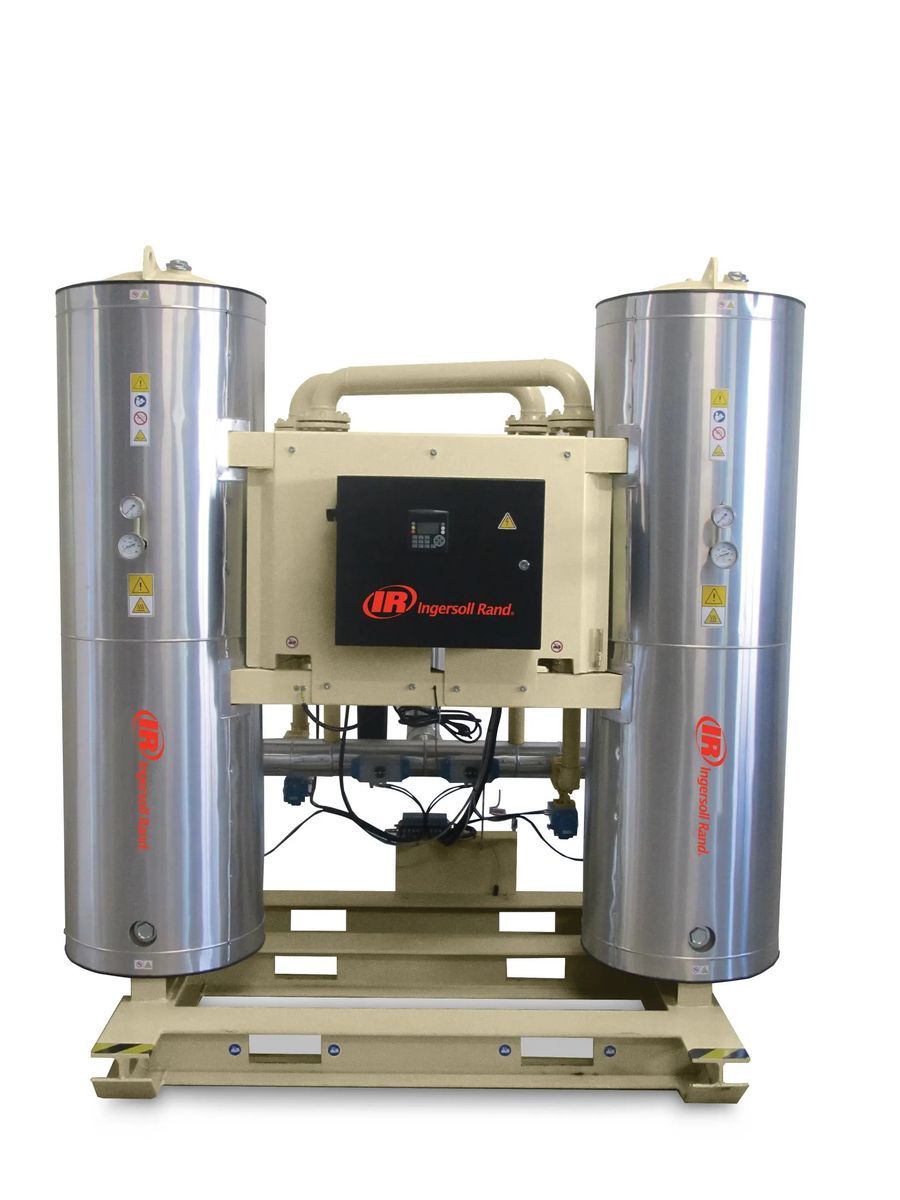

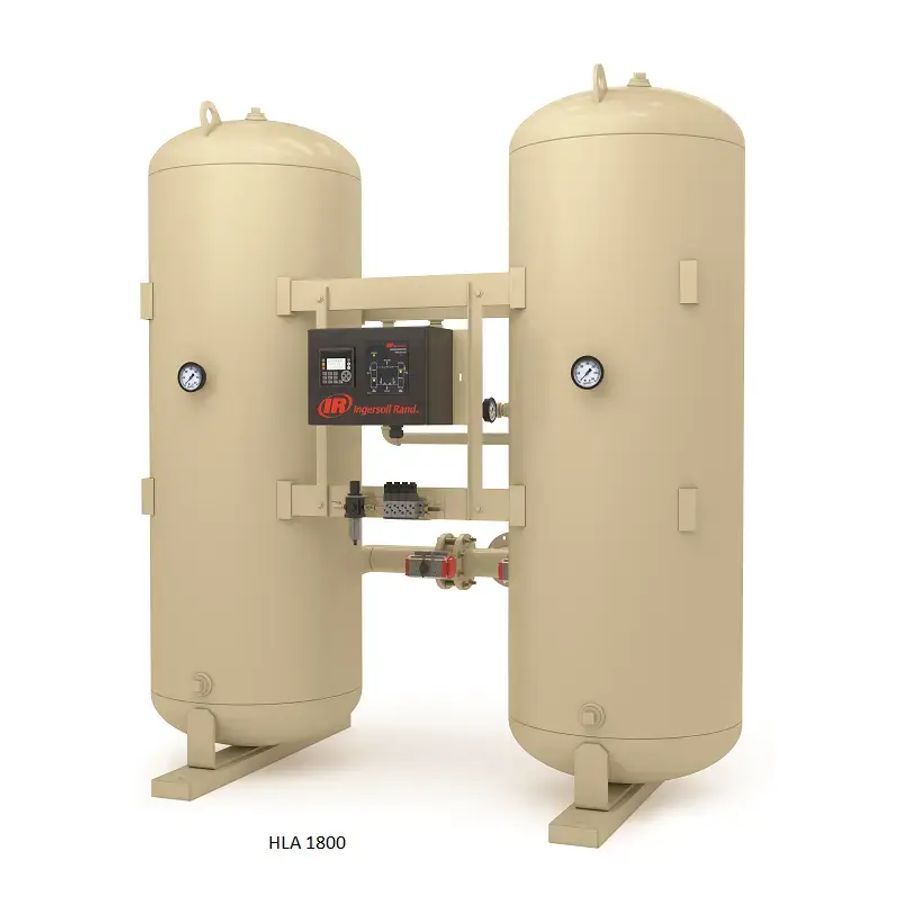

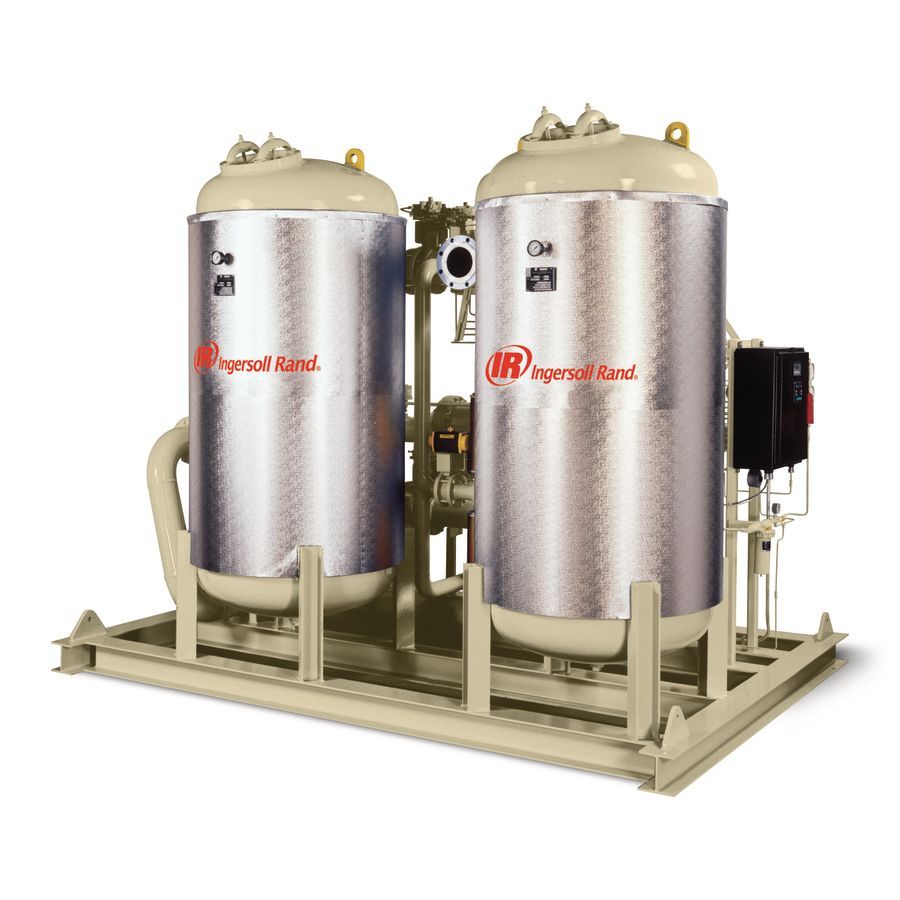

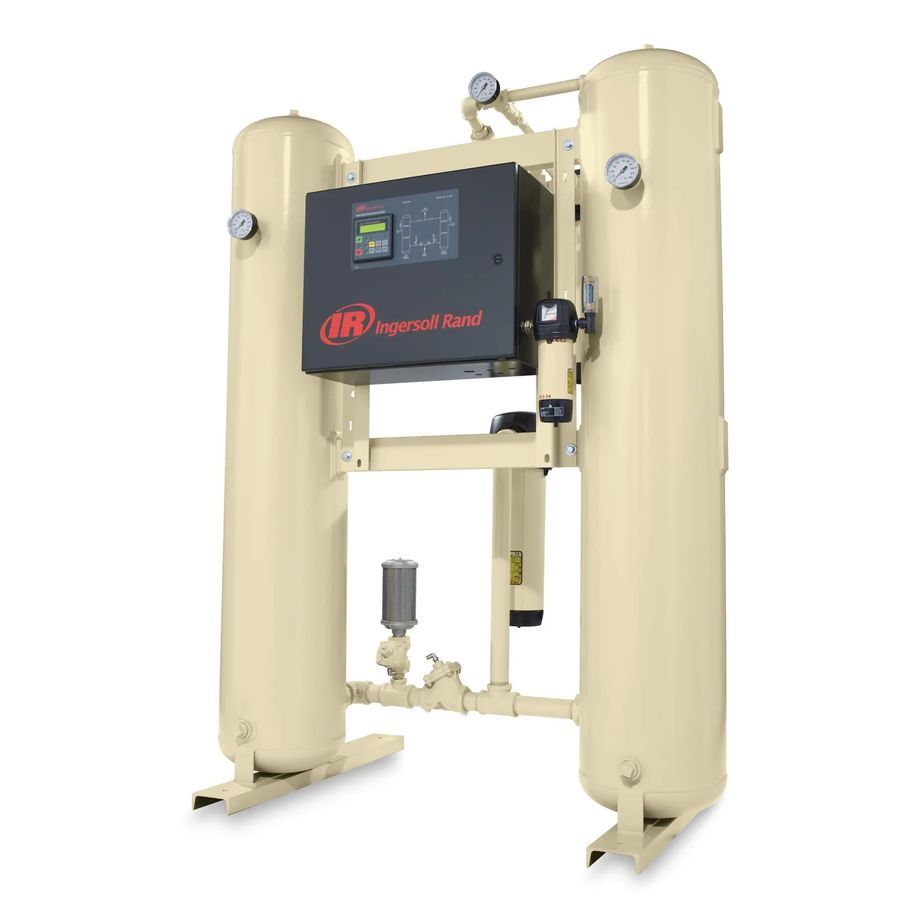

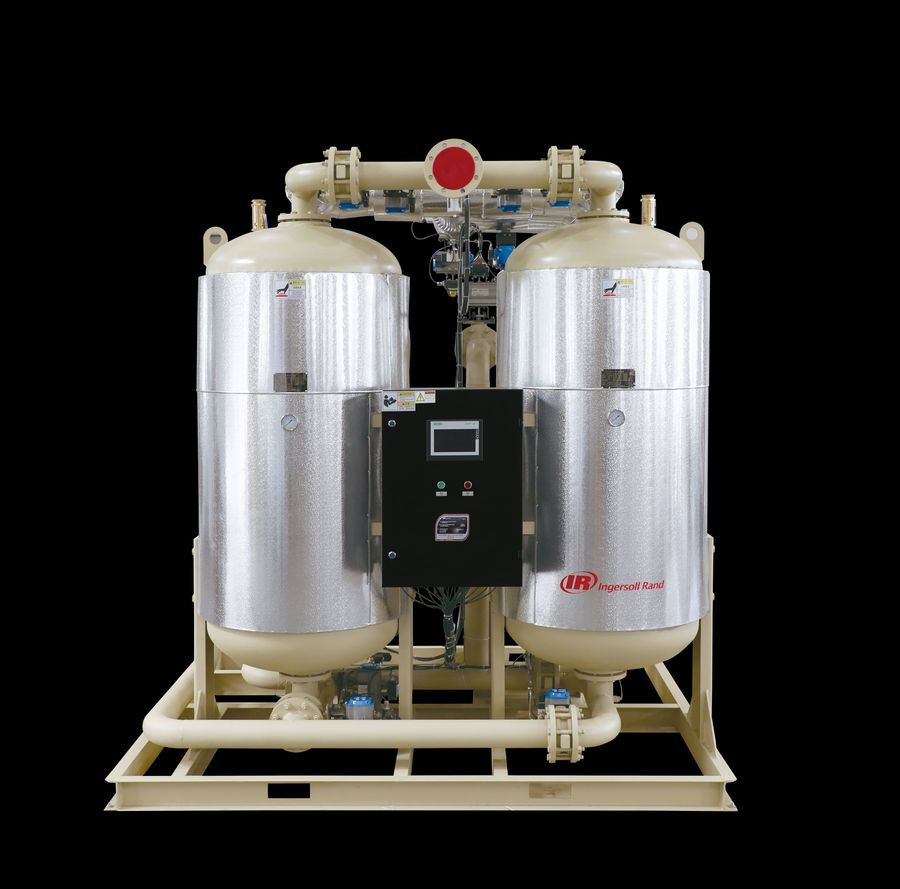

Máy sấy & lọc khí nén Ingersoll Rand Heatless Desiccant Dryers 2.5-142 m3/min, 800-5,000cfm

Model

Capacity m³/min (scfm)

Length x Width x Height mm (in)

Weight kg (lb)

Connection Air In/Out

HL90

2.5 (90)

762 (30.0) x 1,029 (40.5) x 1,603 (63.1)

215 (475)

1" NPT

HL120

3.4 (120)

762 (30.0) x 1,029 (40.5) x 1,603 (63.1)

255 (563)

1" NPT

HL160

4.5 (160)

813 (32.0) x 1,130 (44.5) x 1,679 (66.1)

321 (707)

1 1/2" NPT

HL200

5.7 (200)

813 (32.0) x 1,130 (44.5) x 1,679 (66.1)

332 (731)

1 1/2" NPT

HL250

7.1 (250)

813 (32.0) x 1,232 (48.5) x 1,697 (66.8)

394 (869)

1 1/2" NPT

HL300

8.5 (300)

813 (32.0) x 1,232 (48.5) x 1,697 (66.8)

419 (924)

2" NPT

HL400

11.3 (400)

919 (36.2) x 1,334 (52.5) x 1,722 (67.8)

506 (1,115)

2" NPT

HL500

14.2 (500)

1,008 (39.7) x 1,435 (56.5) x 2,096 (82.5)

709 (1,564)

2" NPT

HL600

17.0 (600)

1,078 (42.4) x 1,435 (56.5) x 2,096 (82.5)

755 (1,664)

2" NPT

HL800

22.7 (800)

1,302 (51.3) x 1,626 (64.0) x 2,226 (87.6)

915 (2,017)

3" NPT

HL1000

28.3 (1,000)

1,302 (51.3) x 1,626 (64.0) x 2,226 (87.6)

1,015 (2,237)

3" NPT

HL1200

34.0 (1,200)

1,302 (51.3) x 1,626 (64.0) x 2,226 (87.6)

1,100 (2,424)

3" NPT

HL1500

42.5 (1,500)

1,391 (54.8) x 1,981 (78.0) x 2,032 (80.0)

1,349 (2,974)

4" FLG

HL1800

51.0 (1,800)

1,540 (60.6) x 2,134 (84.0) x 2,334 (91.9)

1,771 (3,905)

4" FLG

HL2100

59.5 (2,100)

1,540 (60.6) x 2,134 (84.0) x 2,334 (91.9)

1,941 (4,279)

4" FLG

HL2700

76.4 (2,700)

1,550 (60.8) x 2,134 (84.0) x 2,334 (91.9)

2,234 (4,926)

4" FLG

HL3300

93.4 (3,300)

1,676 (66.0) x 2,440 (96.0) x 2,540 (100.0)

1,338 (2,950)

6" FLG

HL4000

113.3 (4,000)

1,676 (66.0) x 2,440 (96.0) x 2,540 (100.0)

1,361 (3,000)

6" FLG

HL5000

141.6 (5,000)

1,830 (72.0) x 2,590 (102.0) x 2,337 (92.0)

1,792 (3,950)

6" FLG
