Phụ tùng Gardner Denver D807

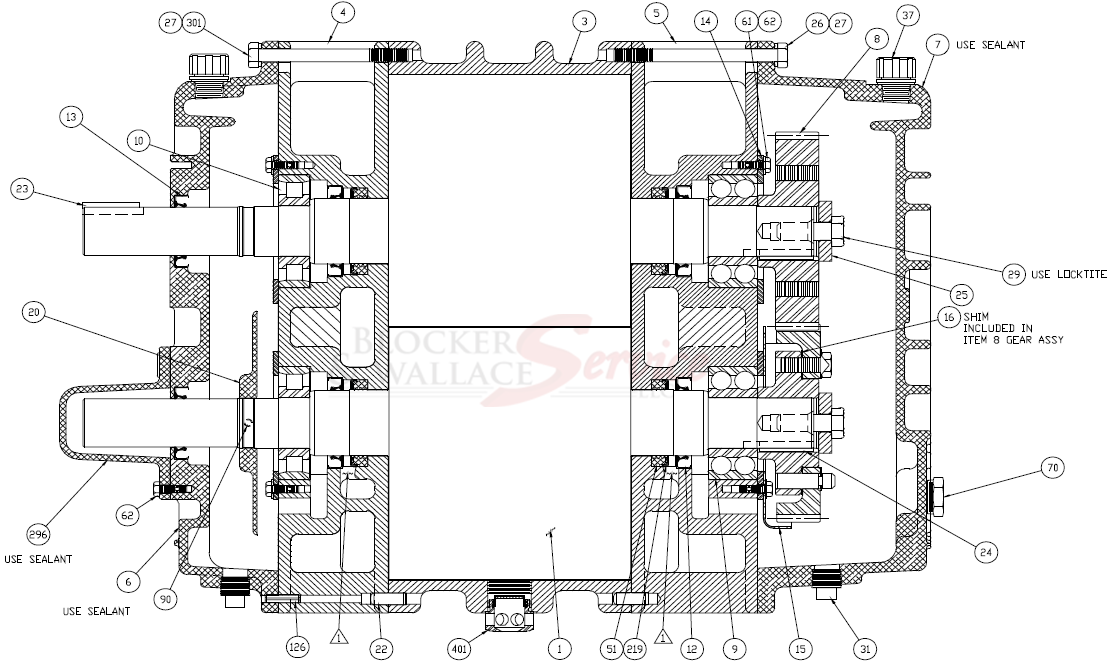

Reference Number

Description

Old Part Number

New Part Number

Quantity

1

ROTOR D807

503064218

300HTF010

2

1

ROTOR D907

503064219

300HTG010

2

3

CYLINDER-AIR D807

500011218

300HTF002

1

3

CYLINDER-AIR D907

500011219

300HTG002

1

4

HOUSING-BRG DR. END D807

501010208

300HTF006

1

5

HOUSING-BRG GR.END D807.

501010206

301HTF006

1

6

COVER-DRIVE D807

521031201

300HTF477

1

7

COVER-GEAR D807

521041205

300HTF602

1

8

KIT-GEAR D807

529000205

300HTF6008

1

PLATE-LOCK (D807 GEAR ASM)

518092208

300HTF837

2

PIN-LOCK .50 DIA (D807 GEAR ASM)

299150000

300HTF838

2

CAPSCREW HEX HD M12 X 35 GEAR ASSY. V.2

199060201

199060201

4

SHIM-LAMINATED (D807 GEAR ASM)

516072223

301HTF732

1

9+

BEARING-BALL 1.5748 I.D., 3.5433 O.D. C3

510004200

VP1004573

2

10+

BEARING-ROLLER 1.5748ID, 3.5433OD, 0.9055W

510003202

12BA213

2

12+

SEAL-OIL 52MM X 72MM X 8MM VITON

512051201

VP1004572

4

13+

SEAL-OIL 1.50 X 2.254 X .313W VITON

512051200

60DD796

2

14

PLATE-BRG RET D807

518000202

300HTF253

4

15

PLATE-BRG RET D807

506040202

300HTF104

1

16

SHIM-LAMINATED (D807 GEAR ASM)

516072223

301HTF732

1

20

SLINGER-OIL D807

515080201

300HTF173

1

22

PIN-DOWEL .375″ x .75″ LG

174210020

62M48

4

23

KEY .375 x .375 x 1.62″ LG SQUARE

299014212

35B139

1

24+

KEY, D807/907 GEAR

299014213

300HTF062

2

25

WASHER-GEAR D807

240430007

300HTF244

2

26

SCREW/M HEX M 10X1, 5 X 120 8, 8 ZINC

128010120

665HMCA10120Z

16

27

WASHER-SPRING/M 10M ZINC

194010400

671HLHR10Z

32

29

SCREW/M HEX M 14 X 2 X 40 8 , 8

130014040

665HMCA140400

2

31

PLUG-MAGNETIC ½ MPT MAG R/B HF00195021

258012010

64BJ3

2

37+

VENT, BREATHER, 1/2″ NPT, CAP STYLE

309025200

VP1004578

2

51+

LABYRINTH-SEAL D807

513135200

300HTF582

4

61

WASHER-PLAIN ¼ BOLT SAE TYPE A

240403400

95F1

20

62

SCREW/M HEX M 6 X 1X 20 8,8

124006420

665HMCA060200

23

70

GAUGE-OIL LEVEL ¾ -14 NPT TYPE THD WIN

307058202

40P45

2

90

SCREW-SET/M M6 X 12MM

140004412

VP1004579

2

126

PIN ¼ x 1.00″LG SPRING ROLL

266204016

62R96

2

219+

RETAINER-SEAL D807

518080201

300HTF205

4

296

CAP-SHAFT D807

521041208

300HTF237

1

301

SCREW/M HEX M 10 X 1,5X 110 8, 8 ZINC

128010110

665HMCA10110Z

16

401

PLUG-MELT

509010204

300HTF191

2

410

SEAL,V-RING 1.500 SHAFT

513030202

300HTF316

1

SCREW/M HEX M16X2 35 8.8

132016035

665HMCA160350

4

WASHER-SPRING/M 16M

194016000

671HLHR160

4

+

GASKET D807 1/16″ THICK

526002201

526002201

2

LUBE- AEON PD QUART (order 28G24)

520000200

28G23

1
