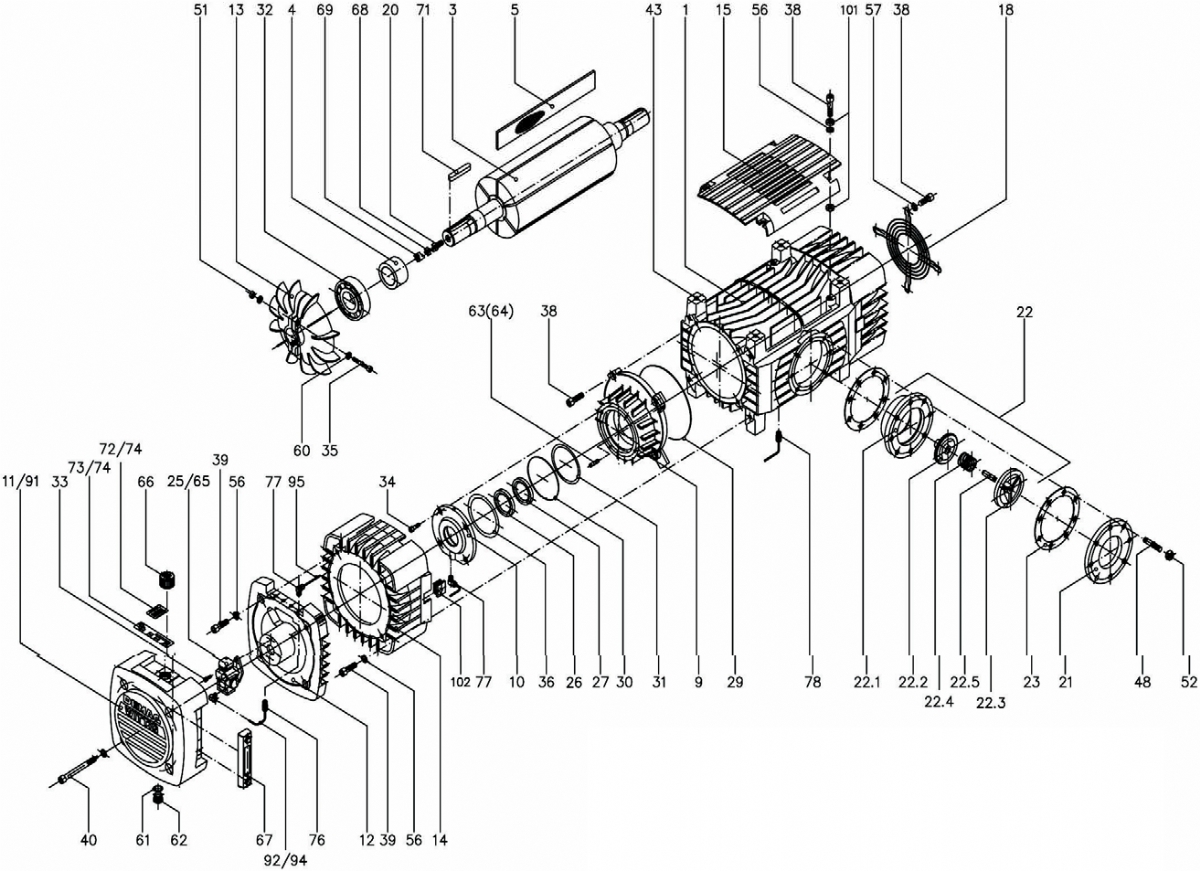

Phụ tùng Gardner Denver RFL 60

ITEM

QTY

Part #

Description

1

1

96100100

BODY CASING-RFL60

3

1

96100600

ROTOR-RFL60

5

6

34260600

VANE-RFL60

15

2

09774800

BODY SHROUD-RFL60

65

1

42592800

PUMP-OIL (RFL)

4

2

98231200

RING-DISTANCE (RFL)

9

2

96100400

COVER-END – RFL

10

2

98230700

COVER PLATE (RFL)

11

1

96100900

OIL TANK (RFL 100)

12

1

96101000

FLANGE, OIL POT INTERM. (RFL)

13

2

98226100

FAN,RTL60,80,100 (RFL)

14

2

98230100

HOOD,FAN, RFL100

18

1

34025600

MESH,PROTECTION,RTL60,80,100,RFL

20

1

96101200

SCREW-DRIVE FOR RFL OIL PUMP

21

1

43950700

FLANGE, RFL

22

1

98208600

VALVE,NON-RETURN,RTL60,80,100-RFL

23

3

46454100

GASKET, TW100DN100, RTL, RFL

25

1

46563500

GASKET

26

2

46105400

SEAL, SHAFT

27

2

46105600

SEAL, SHAFT RFL

29

3

46368600

O-RING, 205x3B, RTL, RFL

30

2

46365900

O-RING,RFW150,BEARING,COVER

31

2

45169900

FEATHERINGS

32

2

41122900

CYLINDRICAL ROLLER BEARING

33

2

44503100

CHEESEHEAD SCREW

34

8

44505300

BOLT, CHEESEHEAD – RFW 260

35

2

44505600

BOLT, CHEESEHEAD – RFL100

36

2

45187900

SHIM, BEARING .1

38

20

44509200

BOLT

39

10

44509700

BOLT, CHEESEHEAD

40

2

44511000

BOLT, OIL TANK

43

2

44480200

RINGBOLT

47

8

44614400

DOUBLE END STUD

48

8

44614700

DOUBLE END STUD

51

2

45019000

NUT-HEX, RFW 260

52

22

45019300

NUT-HEX, M12

56

12

45118000

WASHER

57

4

45101200

SPACER

60

4

45159900

CLAMP-DISC

61

4

42172100

GASKET

62

1

44487400

SCREW-LOCKING – RFW 260

63

2

44901900

PIN-CYLINDRICAL,D8 M6x28MM, RFW, RTL

64

2

44843100

PIN-TAPER/M, M8x30MM, RFW, RTL

66

1

47201900

CAP-OIL FILL – RFL/RFW/SLS

67

2

42640600

GLASS-SIGHT OIL LEVEL – RFL

71

2

45452000

KEY, RTL, RFL

72

1

45588600

NAME PLATE FOR OIL TYPES

73

1

45589900

NAME PLATE

76

4

42542000

SCREW FITTING W/NON RETURN VALVE

77

6

42516700

PIPE CONNECTION

78

4

42542300

CONNECTOR, WPS, RFW

91

1

42537300

SLEEVE, SUCTION (RFL, RFW, SLS)

92

8

42543100

SLEEVE, INSERTING FOR RFW

93

1

06200700

PIPE, RFW 260 (sold in 2M lengths)

94

1

34400400

Hose Line 4×1 (sold in 2M lengths)

95

1

06200300-2

STEEL OIL PIPE, 4mm x 0,7mm x 2M long

96

1

06200300-2

STEEL OIL PIPE, 4mm x 0,7mm x 2M long

97

1

06200300-2

STEEL OIL PIPE, 4mm x 0,7mm x 2M long

98

1

06200300-2

STEEL OIL PIPE, 4mm x 0,7mm x 2M long

+

SP9610142

KIT-SERVICE FOR RFL60

+

300FLA6010

KIT-SERVICE FOR RFL60 – W/O BEARINGS
