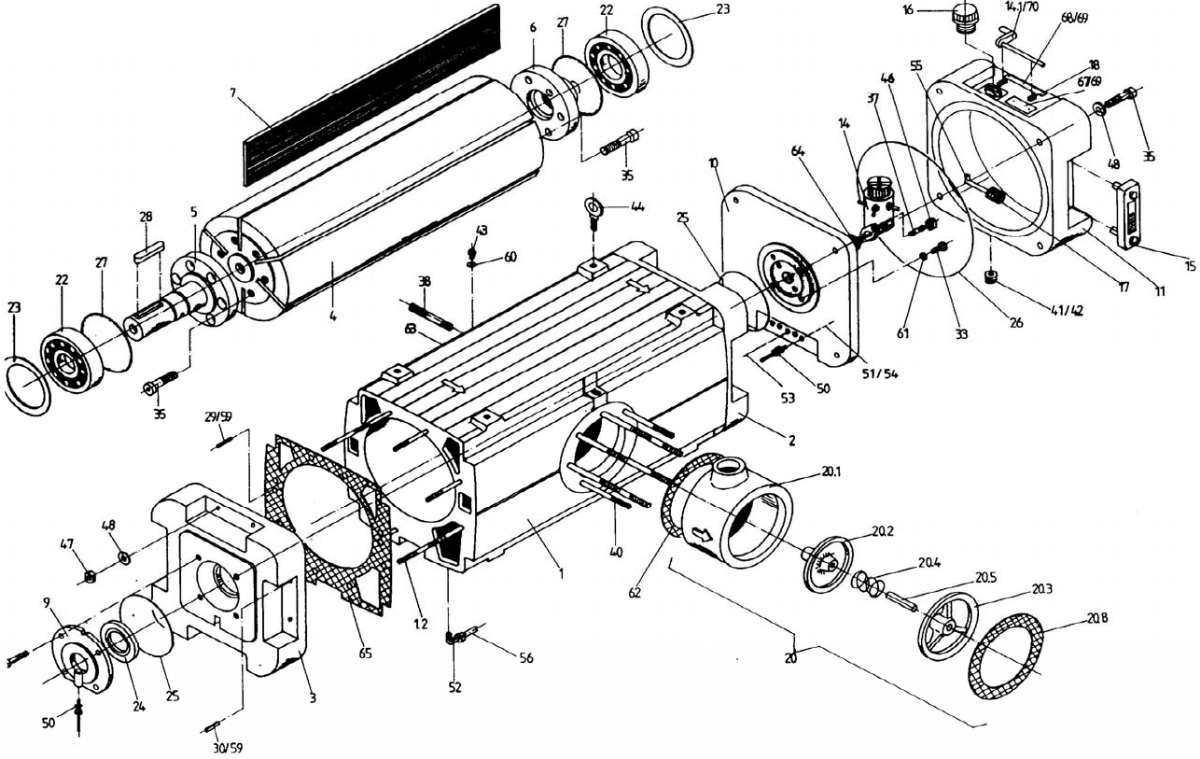

Phụ tùng Gardner Denver RFW 200

ITEM

#

QTY

Part #

Description

1

1

90396200

CASING

1-2

16

44614800

STUD-DOUBLE END, M12 X 45

1-3

1

44486500

LOCKING SCREW

4

1

90396600

ROTOR

7

6

34265800

ROTOR VANE

14

1

42561400

OIL PUMP

50

5/6/6

42542300

CONNECTOR, WPS, RFW

51

5

42542000

SCREW FITTING W/NON RETURN VALVE

52

3/4/4

42516700

PIPE CONNECTION

53

1

LOCKING SCREW

54

1

42516900

SCREW FITTING W/ NON-RETURN VALVE (RFW)

56

1

06200300-S

PIPE 4 X 0.7

57

1

34400400

Hose Line 4×1 (sold in 2M lengths)

58

8/10

42543100

SLEEVE, INSERTING FOR RFW

2

10

90399400

COVER, RFW “B” END PLATE

3

1

90399300

COVER, RFW “A” END PLATE

5

1

90399700

FLANGE,SHAFT,RFW260

6

1

90398900

FLANGE B (RFL200)

9

1

98230700

COVER PLATE (RFL)

11

1

90399600

OIL TANK

15

2

42640600

GLASS-SIGHT OIL LEVEL – RFL

16

1

47201900

CAP-OIL FILL – RFL/RFW/SLS

17

1

42537300

SLEEVE, SUCTION (RFL, RFW, SLS)

18

2

51055100

TUBE CLIP,RFW

20

1

99355900

VALVE, NON-RETURN FOR WITTIG RFW

22

2

41123000

CYLINDRICAL ROLLER BEARING

23

2

45189000

WASHER

24

2

46105400

SEAL, SHAFT

25

2

46365900

O-RING,RFW150,BEARING,COVER

26

1

46370000

O-RING, 330x5B, RFW, LPSO

27

2

45169800

WASHER

28

1

45451900

SPRING, ADJUSTABLE (RFW)

29

2

44901900-S

STRAIGHT PIN

30

2

44843100

PIN-TAPER/M, M8x30MM, RFW, RTL

33

8

44505300

BOLT, CHEESEHEAD – RFW 260

35

16

44509600

CHEESEHEAD SCREW

37

2

44606900

STUD-DOUBLE END, RFW 260

38

8

44614500

DOUBLE END STUD

40

8

44616100

DOUBLE END STUD

41

1

42172100

GASKET

42

1

44487400

SCREW-LOCKING – RFW 260

43

2

44489700

LOCKING SCREW

44

2

44480400

RINGBOLT

46

2

45019000

NUT-HEX, RFW 260

47

16

45019300

NUT-HEX, M12

48

16

45113200

WASHER

55

1

06200700

PIPE, RFW 260 (sold in 2M lengths)

59

4

58741500

CONICAL STOPPER

60

2

42171600

SEAL

61

4

42170300

SEAL, RFW260

62

1

46454000

GASKET, DN100PN16, WPS, RFW, LPK, SLT

63

1

46454200

GASKET, INTAKE FLANGE (RFW)

64

1

46563500

GASKET

65

2

46629000

CASING GASKET

67

1

45588600

NAME PLATE FOR OIL TYPES

68

1

45589900

NAME PLATE

69

4

45301900

TRUSS HEAD RIVET

70

2

44331700

CHEESEHEAD SCREW

+

SP9039602

KIT-SERVICE FOR RFW200

+

300FWC6010

KIT-SERVICE FOR RFW200 – W/O BEARINGS
