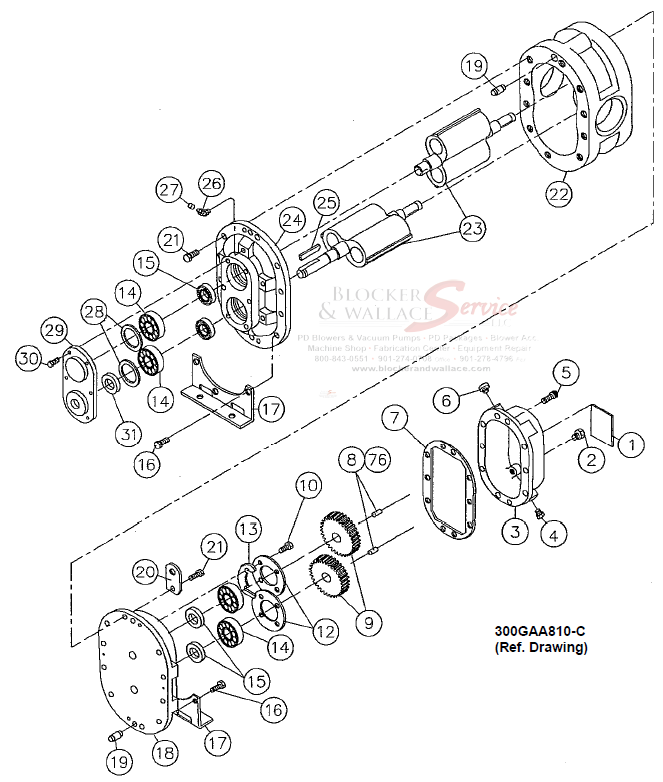

Phụ tùng Gardner Denver Sutorbilt 2MP:
|
Reference Number
|
Description |
Quantity Required |
2M Part Number
|
2L Part Number |
||
|
|
1 |
NAMEPLATE |
1 |
302GAA496 |
302GAA496 |
|
|
|
2 |
OIL LEVEL PLUG |
2 |
64AC1 |
64AC1 |
|
|
|
3 |
GEAR CASE |
1 |
900893022801 |
900893022801 |
|
|
|
4 |
DRAIN PLUG |
1 |
64AC1 |
64AC1 |
|
|
|
5 |
SCREW GEAR CASE TO BEARING HOUSING |
6 |
75LM224 |
75LM224 |
|
|
|
6 |
VENT PLUG |
1 |
900639650102 |
900639650102 |
|
|
O |
7 |
GASKET GEAR CASE |
1 |
200GAA715 |
200GAA715 |
|
|
O |
8 |
TAPER PIN |
2 |
62V73 |
62V73 |
|
|
|
9 |
TIMING GEAR GROUP |
1 |
200GAA6008 |
200GAA6008 |
|
|
O |
10 |
SCREW BEARING RETAINER TO BEARING |
8 |
75A185N |
75A185N |
|
|
|
12 |
BEARING RETAINER |
2 |
900892021801 |
900892021801 |
|
|
+ |
13 |
SHIM SET |
1 |
900891022900 |
900891022900 |
|
|
O |
14 |
BEARING |
4 |
12BA142 |
12BA142 |
|
|
O |
15 |
MAIN SEAL PER APPLICATION BELOW |
|
|
|
|
|
|
|
LIP SEAL VERSION |
4 |
60DD713 |
60DD713 |
|
|
|
|
MECHANICAL SEAL VERSION |
4 |
900871020002 |
900871020002 |
|
|
|
16 |
SCREW FOOT TO BEARING HOUSING |
6 |
75A34 |
75A34 |
|
|
|
17 |
FOOT GROUP |
|
|
|
|
|
|
|
VERTICAL FOOT GROUP |
1 |
GAA81896 |
GAA81896 |
|
|
|
|
HORIZONTAL FOOT GROUP |
1 |
GAA81897 |
GAA81897 |
|
|
|
18 |
HOUSING BEARING (GEAR END) |
|
|
|
|
|
|
|
LIP SEAL |
1 |
900894021001 |
900894021001 |
|
|
|
|
MECHANICAL SEAL |
1 |
204GAA006 |
204GAA006 |
|
|
|
19 |
DOWEL PIN |
4 |
62M48 |
62M48 |
|
|
|
20 |
LIFTING LUG |
2 |
200GAA451 |
200GAA451 |
|
|
|
21 |
SCREW BEARING HOUSINGS TO IMPELLER |
14 |
75A34 |
75A34 |
|
|
|
22 |
IMPELLER CASE. |
1 |
900894021201 |
900894021401 |
|
|
|
23 |
SHAFT ASSEMBLY GROUP (SEAL VENTS) |
1 |
GAA81899 |
GAA81898 |
|
|
|
|
|
|
|
|
|
|
|
|
24 |
|
|||
|
|
|
LIP SEAL |
1 |
900894020801 |
900894020801 |
|
|
|
|
MECHANICAL SEAL |
1 |
205GAA006 |
205GAA006 |
|
|
|
25 |
DRIVE KEY |
1 |
900891023101 |
900891023101 |
|
|
|
26 |
GREASE FITTING |
2 |
900639910304 |
900639910304 |
|
|
|
27 |
GREASE FITTING CAP |
2 |
40P58 |
40P58 |
|
|
|
+ |
28 |
WAVY SPRING |
2 |
78W65 |
78W65. |
|
|
|
29 |
DRIVE COVER |
1 |
900893021701 |
900893021701 |
|
|
|
30 |
SCREW DRIVE COVER TO BEARING HOUSING |
6 |
75A185N |
75A185N |
|
|
O |
31 |
DRIVE SEAL |
1 |
900639010802 |
900639010802 |
|
|
*+ |
42 |
PLUGS REQUIRED WITH MECHANICAL SEAL |
6 |
64AC1 |
64AC1 |
|
|
|
|
SHIM IMPELLER CASE |
|
|
|
|
|
|
|
PAPER (.0015/.0020) |
0 |
202GAA732 |
202GAA732 |
|
|
|
|
PAPER (.003) |
0 |
200GAA732 |
200GAA732 |
|
|
|
|
ALUMINUM (.010) |
0 |
201GAA732 |
201GAA732 |
|
|
O |
|
OVERHAUL KIT LIP SEAL |
0 |
200GAA6010 |
200GAA6010 |
|
|
O |
|
OVERHAUL KIT MECHANICAL SEAL |
0 |
201GAA6010 |
201GAA6010 |
|
|
|
76 |
LOCTITE 620 |
1 |
25BC749 |
25BC749 |
o OVERHAUL KITS CONSIST OF BEARINGS, SEALS, GASKET, SHIMS, TAPER PINS AND BEARING RETAINER SCREWS.
