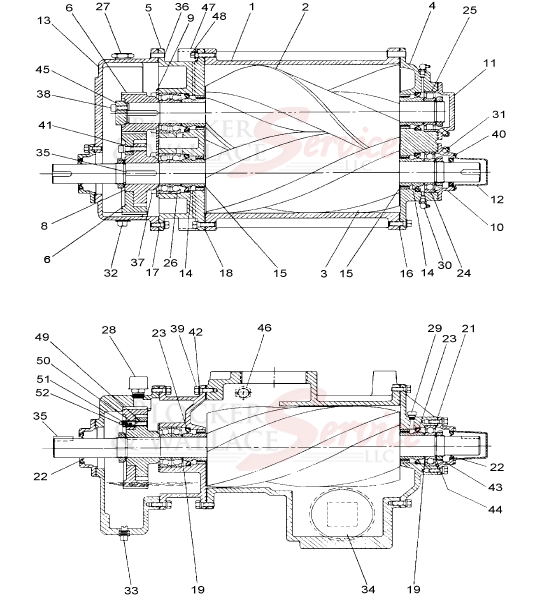

Phụ tùng Gardner Denver T5CDL12L

Reference Number

Description

Quantity

T5CDL12L Part Number

1

Housing

1

200CTH002

Rotor Group, Incl. Ref. No. 2 & 3

1

208CTH010A

2

Rotor Main

3

Rotor Gate

4

Bearing Carrier Inlet End

1

8500155

5

Bearing Carrier Discharge End

1

8501206

6

Gear Kit (Includes next two items)

1

201CTH6008

Gear Driver

1

Gear Pinion

1

8

Hub – Gear

1

8500011

9

Clamp Plate Bearing

1

8500152

10

Cover End

2

8500151

11

Cover End

1

      8500150

12

Cover – Shaft

1

8501103

13*

Cover End

1

8500436

14

Spacer – Bearing

4

8500148

15

Seal – Rotor Shaft

4

8501081

16

Shim Housing

1

8500023

17

Gasket – Cover

1

8500030

18

Shim — Housing Set

1

8500029

19

Shim – Shaft Set

2

8501269

21

Gasket — Cover End

3

8500163

22

Seal – Oil Shaft

2

8501240

23

Seal — Oil Bearing

4

60DD513

24

Bearing – Ball

1

8500165

25

Bearing — Roller Cylindrical

1

8501200

26

Bearing — Angular Contact

4

8500406

27

Gauge — Oil Level

1

40P45

28

Breather Filter

1

5L223

29

Breather Vent

2

5L255

30

Fitting Lube – Grease

2

40E9

31

Fitting Lube – Relief

2

40E37

32

Pipe Plug SqHd

1

64AA3

33

Plug Magnetic

1

64BJ4

34

PipePlug – Countersunk

2

64B10

35

Key Square

3

8500109

36

Pin – Dowel

6

62M83

37

Screw — Socket Head Lock

8

75P6N

38

Screw — Socket Head Lock

7

75P57N

39

Screw HexHead

56

75A1

40

Screw RoundHead

3

75G17

41

Washer – Plain

4

95U3

42

Washer – Lock

56

95B3

43

Bearing Locknut

3

50Z9

44

Bearing Lock Washer

3

95W25

45

Clamp Plate – Shaft

1

8500414

46

Fusible Plug

1

8501246

47

Cover – Vent

2

8501360

48

Screw – Hex Head

4

75A2

49

Pin – Timing

1

8504125

50

Bushing – Timing

1

8504126

51

Washer – Plain

1

95W17

52

Screw — Socket Head Lock

1

75LM12N
