Bơm công nghiệp thẳng đứng trục dài CL – ZIGONG (Sichuan Zigong Pump)

Giới thiệu bơm công nghiệp cl

Bơm công nghiệp thẳng đứng trục dài CL – ZIGONG (Sichuan Zigong Pump) là bơm công nghiệp cl của hãng ZIGONG (Sichuan Zigong Pump). CL Long Trục Vertical bơm Transport media containing solid particles. Especially forconveying hard abrasive particles such as iron oxide chips,sand,and coal powder,or conveying nước sạch and media with similar physical and chemical properties to water.

Giới thiệu sản phẩm

The series of pumpsare a new structural product developed to meet market demand.After extensive industrial applications and continuous digestion and absorption of the advantages of similar products, significant improvements have been made in structure and hydraulic performance.The product complies with the national standard GB/T5656-2008 Technical Conditions for Centrifugal Pumps (Class II).

Thông số kỹ thuật bơm công nghiệp cl

Ứng dụng bơm công nghiệp cl

Iron oxide scale water process in the steel industryChemical industry,paper-making,pulp,such like normal processing industryWater supply plant and sea water desalinationAuxiliary system of power stationEnvironment protection công trình.

Đặc điểm cấu tạo

Thiết kế

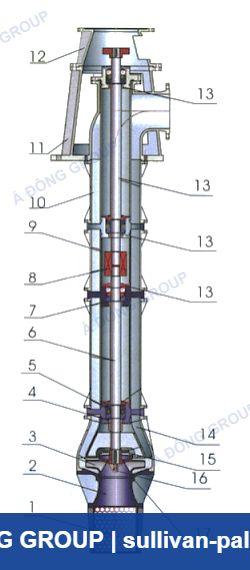

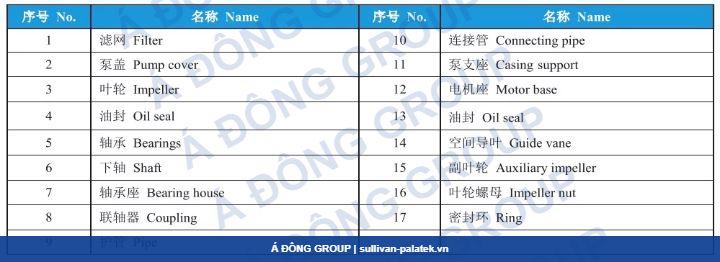

The CL series long Trục vertical impurity bơm has an Cánh bơm (bánh công tác) submerged in the môi chất,with a guide vane guiding the flow in space.The môi chất fows symmetrically along the axis between the protective tubeand the connecing tube.The Trục and guide pipe can be connected in series with multiple sections according to the depth of the liquid.Vertical motor direct connection,horizontal outlet.Compact strucure,small footprint,fully utilizing the depth ofthe site to meet production needs.

Cánh bơm (bánh công tác)

Combining more than ten years of Thiết kế and production experience, adopting a unique bơm body Thiết kế concept, the fluid analysis software CFD isused for analysis.High hydraulic efficiency, reasonable structural Thiết kế, and tiện lợi maintenance.

Guide Vane

By analyzing and studying the space guide vanes,the key to energy conversion has been identified,improving the efficiency of theentire machine.

Flexible Coupling

Cancel theguide bearing,overcome the unstable lifespan of the guide bearing, large bơm vibration,easy bending of the Trục, frequent maintenance, and other shortcomings, resulting in a long maintenance cycle.

Ổ bi và bôi trơn

Bearing support is a wholly one,bearings are lubricated with oil bath,oil slingercan ensure enough lubrication,all these prevent somewhere nhiệt độ rise becauseof lower lubricaing oil.According tospecific work condition,bearing suspension can be non-cooling(with steel heat),water cool-ing(with water cooling jacket)and air cooling(with fan)Bearings are sealed by labyrinth dustproofdisc

Làm kín trục (phớt)

Làm kín trục (phớt) can be Làm kín kiểu tết bện (tết bện) and phớt cơ khí.Seal of bơm and auxiliary flush plan will be in accordance with API682 to ensure safe and reliable seal in different work condition.

Các môi chất bơm được

NaCl, KCl, CoCl2, CaCl, NH4Cl, LiCl, NaOH, MgOH, NaCIO…H2SO4, Na2SO4, K2SO4, NiSO4, MnSO4, (NH4)2SO4, CaSO4, Li2SO4, ZnSO4…Li2CO3, LiHCO3, KH₂PO₄, NH4H2PO4, (NH₄)₃PO₄…nước sạch, Slurry, nước thải, dung dịch khử lưu huỳnh, dung dịch protein cá, dung dịch lên men thực phẩm, landfilll leachate…axit photphoric, axit sunfuric, axit clohydric …dầu thô (bơm đa pha dầu-khí)

Vật liệu chế tạo

Gang cầu, Gang nhôm, Thép đúc, Cr26, Cr30.SS304, SS316L, SS2205, SS2507, SS904L, CD4MCU,Titan cấp 2/8/9/10.Hợp kim 20, Hợp kim 31 Monel, Niken, Hastelloy B and C.Các vật liệu khác cung cấp theo yêu cầu.

Á Đông Group – đơn vị cung cấp bơm ZIGONG chính hãng tại Việt Nam. Liên hệ để được tư vấn kỹ thuật, chọn đúng bơm công nghiệp cl theo lưu lượng, cột áp và môi chất, kèm báo giá.
