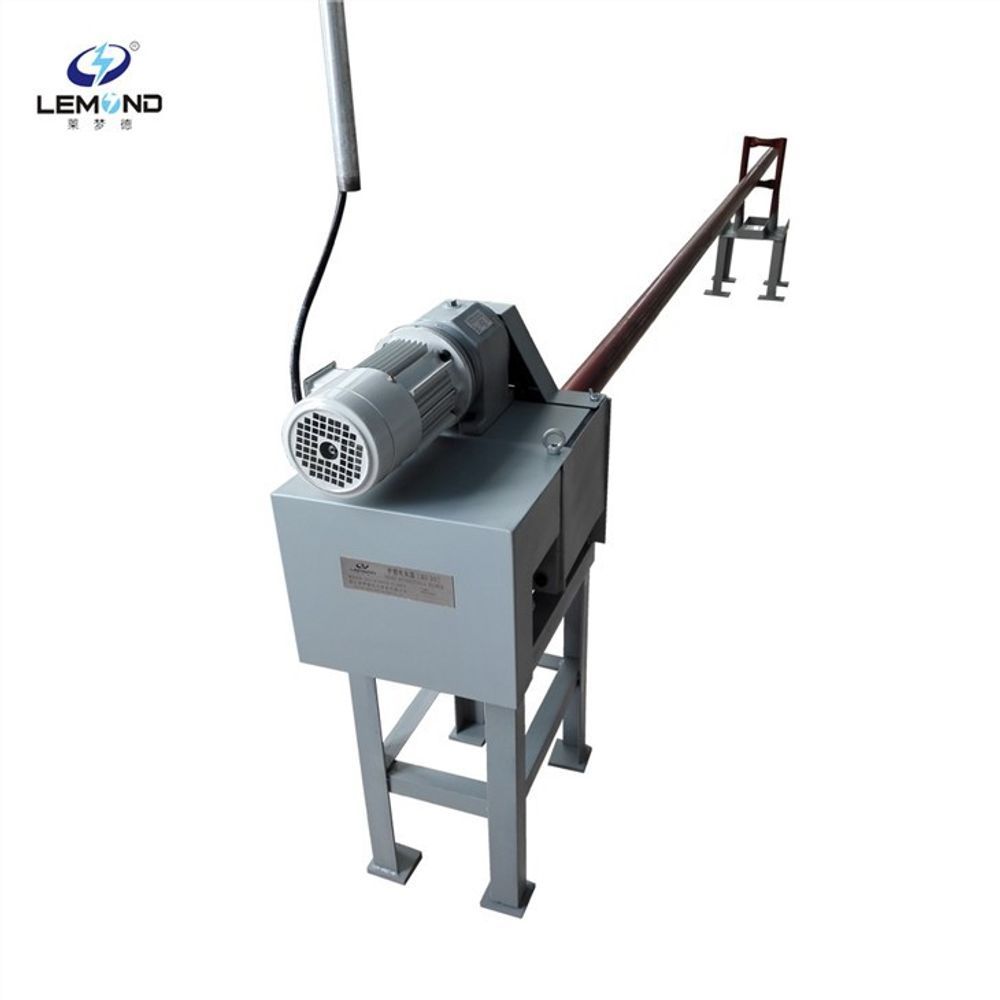

Máy thổi bụi lò hơi Zhejiang Lemond IK Rotary Soot Blower

Tổng quan (Tiếng Việt)

IK Rotary Soot Blower là máy thổi bụi phần tử quay IK (Rotary) của Zhejiang Lemond, dùng để làm sạch bề mặt trao đổi nhiệt vùng nhiệt độ trung–thấp như bộ sấy không khí. Thiết bị chính hãng, thông số kỹ thuật chi tiết theo bảng dưới đây (giá trị giữ nguyên theo nhà sản xuất).

Thông số kỹ thuật

Mô tả sản phẩm

Máy thổi bụi IK Rotary: phần tử thổi được lắp vòi phun dọc toàn bộ chiều dài và quay trong dòng khói. Quá trình thổi thực hiện bằng chuyển động quay kết hợp điều khiển chuyên dụng, làm sạch tro ở vùng nhiệt độ trung–thấp (bộ sấy không khí, bộ hâm nước).

English (original)

The rotary soot blower blowing element is equipped with nozzles along its entire length and rotates in the path of the flue gas. The blowing process is done in a rotating movement and a special control valve enables the cleaning of specific segments. The blowing process ends when the necessary number of rotations has been performed(this blowing cycle will be decided by site requirement). The blowing tube/element remains in the flue gas path.

LMD-D92 fixed rotary soot blower is mainly used for waste heat boilers, marine boilers, and fast-loading boilers. It is also used for purging the low-temperature area (reheater, economizer, tubular preheater, flue gas recirculation, and dust removal area) of the large-scale boiler, soot deposition, and coking on the heating surface.

We generally use a framework and wooden case package, which are suitable for sea and land export transportation. For longer soot blowers(above 6 meters

), we will use frame packaging and fix both sides with channel steel. For shorter soot blowers (less than 5 meters) and soot blower parts, we will use wooden cases for packaging. Each package will be covered with a rainproof cloth to prevent moisture. We usually use container and bulk cargo ships for transportation. If it is less than 12 meters, we will use the container for transportation. If it is more than 12 meters, we will put it on the deck of the ship. We have enough shipment experience for the transportation of super long products. Welcome to ask any soot blower queries, we are very glad to support you.

Our main products are soot blower complete unit and sootblower parts. We could not only supply parts for our LEMOND soot blower, but we could also supply replaced parts for various brands like Clyde Bergemann, Diamond power, and Hopkinson…..We do business both in domestic market and foreign market. Currently, we have exported our soot blower to many countries like Russia, Germany, Turkey, Pakistan, Malaysia, Thailand, Vietnam, and Indonesia…mainly for Southeast Asia, the European market. We keep expanding our market, we believe our Lemond soot blower will be exported all over the world. Welcome for contacting us: +8618702132593, info@zjlemond.com

We have ISO9001, ISO14001, and ISO45001 certificates. And we have EN10204/3.2 test certificate issued by SGS and Inspecco third party, this was required by a Turkey power plant when they purchased sootblower lance tube, feed tube, nozzle tube, rake tube, poppet valve from our company before. We could apply certificates according to customers’ requirements for different countries.

Specifications

Mua hàng | Contact

Á Đông Group cung cấp thiết bị thổi bụi lò hơi Zhejiang Lemond chính hãng tại Việt Nam. Liên hệ để được tư vấn, báo giá và hỗ trợ kỹ thuật.
