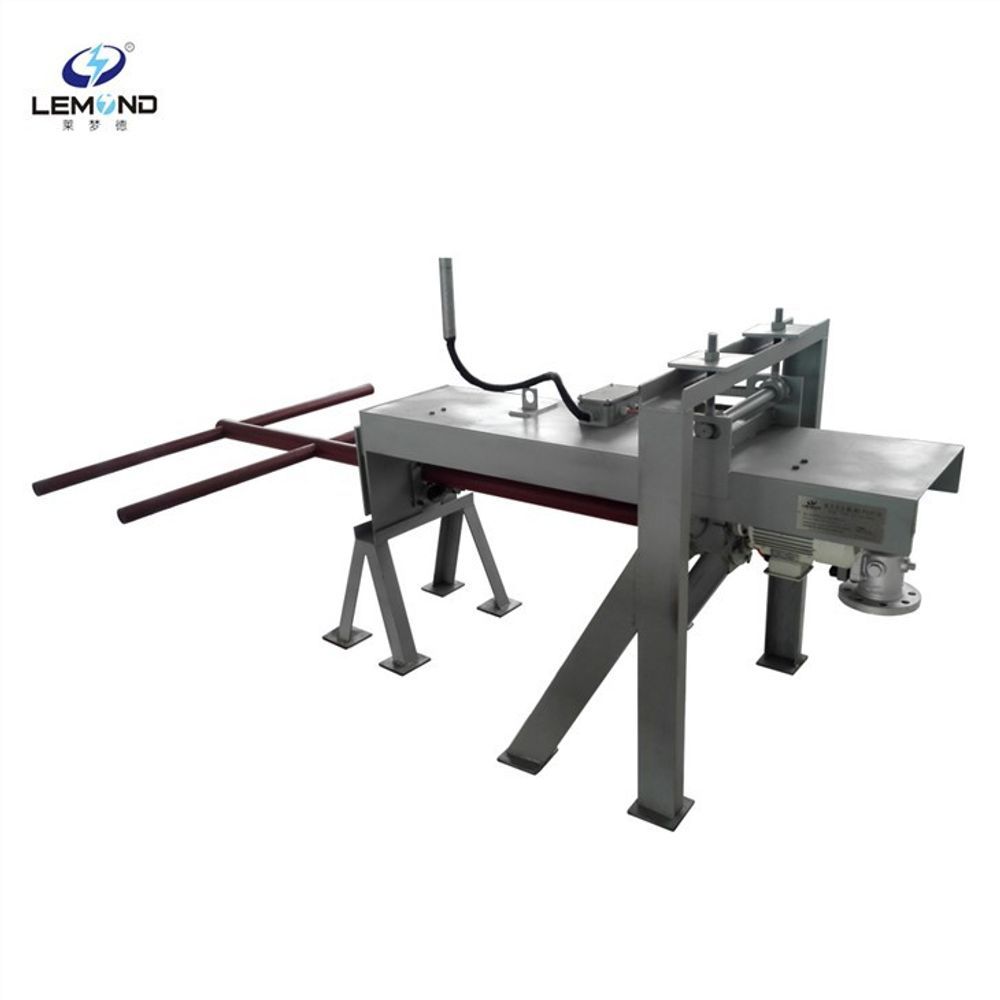

Steel Plant SCR Rake Sootblower là máy thổi bụi kiểu cào (Rake) của Zhejiang Lemond, dùng để làm sạch bề mặt trao đổi nhiệt và thiết bị phản ứng SCR khử NOx. Thiết bị chính hãng, thông số kỹ thuật chi tiết theo bảng dưới đây (giá trị giữ nguyên theo nhà sản xuất).
1. Chúng tôi là nhà sản xuất có kinh nghiệm trong lĩnh vực làm sạch tro lò hơi trong 20 năm nữa.
5. Hỗ trợ kỹ thuật mạnh mẽ trước, trong và sau bán hàng.
| Tên sản phẩm | LMD-PSAT/D rake sootblower |
|---|---|
| Môi chất thổi bụi | Steam or compressed air |
| Lĩnh vực ứng dụng | SCR reactor |
| Vật liệu van | WCB, 20CrMo, 17CrMo55 |
| Vật liệu ống thổi | 15CrMo,310S |
| Vật liệu ống cào | 15CrMo,310S |
| Vật liệu vòi phun | SS304, SS321, SS310S |
| Hành trình | 0.5-5m |
| Total weight | 200-720kg |
| Áp suất thổi khuyến nghị | 0.8-1.5Mpa |
| Total weight | 200-720kg |
| Tốc độ di chuyển | 0.54m/min(steam), 1.43/min(compressed air) |
| Mặt bích đi kèm | DN80 PN63 DIN2546 Standard |
| Manufacturer | Zhejiang lemond power equipment co.,ltd |
| Country of Origin | China |
| Certificate | ISO9001:2015 |
LMD-PSAT/D sootblower is widely in steel plant SCR reactor. Rake tubes design is according to the size of the SCR reactor, to make the blowing effect as good as possible. Rake tube are always staying inside the reactor area, so the temperature inside the boiler is under 450°C, won’t be too high. This sootblower’s main spare parts are track beam, gear box, carriage, feed tube, lance tube, central tube, rake tube, valve, valve opening mechanism, terminal box, furnace support, front wheel support and wall box.
1. The blowing rake is equipped with high performance nozzles – blowing element remains in the flue gas path
2. During the blowing process the blowing rake continues to move axially into the flue gas path
3. On reaching the front-side end position the direction of movement changes and the blowing rake returns to its rest position
Here we share some picture which our our rake sootblower installed inside and outside the boiler:
This project is for Vietnam Formosa Ha Tinh steel corporation , 48 sets of rake sootblower for the SCR denitration project. The local contractor workers is doing installation work, our engineer is at plant site for instruction. We have spread our business in many country of the world, Mainly Asia market and European market currently, we believe our LEMOND sootblower will enter into more countries in the future.
1. We are experienced manufacturer in the boiler ash cleaning field for 20 more years.
2. Good quality, all the key parts are mechanised by our factory.
5. Strong technical support before, during and after sale.
| Product name | LMD-PSAT/D rake sootblower |
|---|---|
| Soot blowing medium | Steam or compressed air |
| Application field | SCR reactor |
| Valve material | WCB, 20CrMo, 17CrMo55 |
| Blowing tube material | 15CrMo,310S |
| Rake tube material | 15CrMo,310S |
| Nozzle material | SS304, SS321, SS310S |
| Travel distance | 0.5-5m |
| Total weight | 200-720kg |
| Recommended blowing pressure | 0.8-1.5Mpa |
| Total weight | 200-720kg |
| Speed of travel | 0.54m/min(steam), 1.43/min(compressed air) |
| Companion flange | DN80 PN63 DIN2546 Standard |
| Manufacturer | Zhejiang lemond power equipment co.,ltd |
| Country of Origin | China |
| Certificate | ISO9001:2015 |
Á Đông Group cung cấp thiết bị thổi bụi lò hơi Zhejiang Lemond chính hãng tại Việt Nam. Liên hệ để được tư vấn, báo giá và hỗ trợ kỹ thuật.
