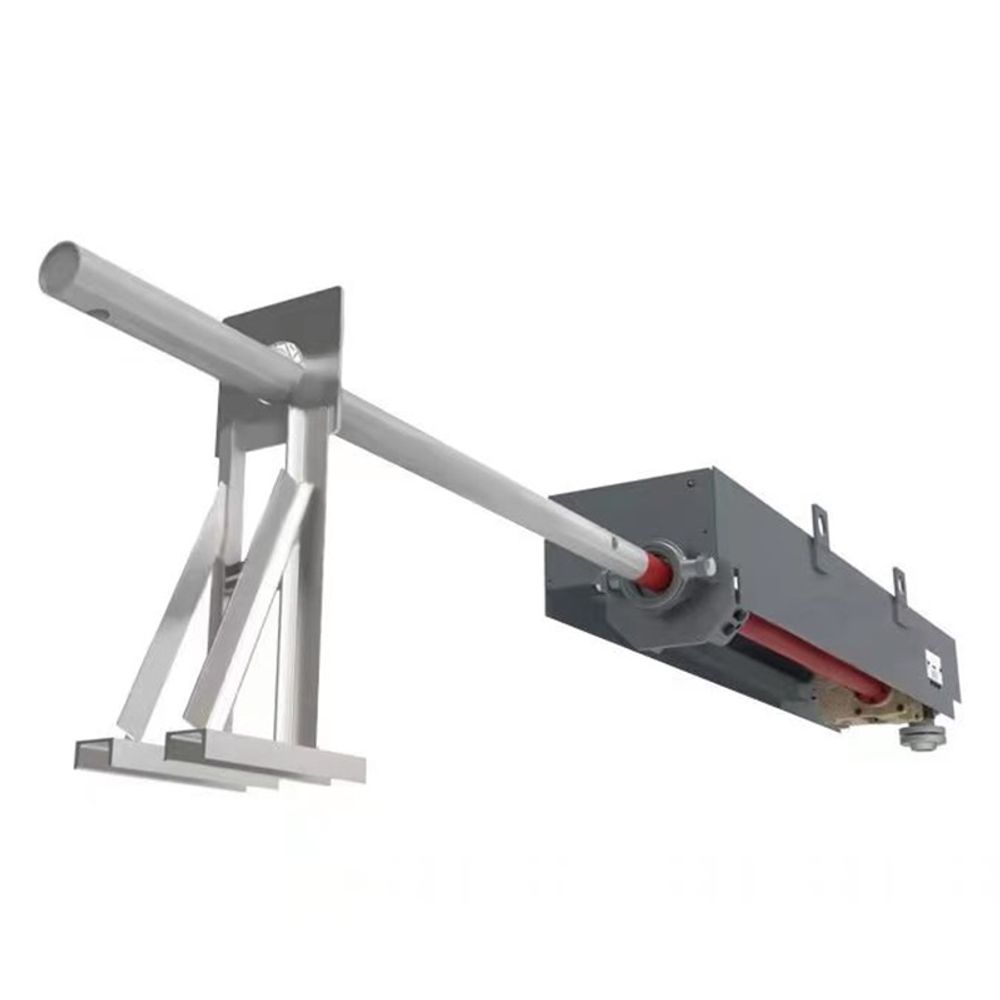

Máy thổi bụi bán thò Hubei Delsan (Half Retractable Soot Blower)

Tổng quan (Tiếng Việt)

máy thổi bụi bán thò half retractable soot blower

English (original content)

The semi-extendable soot blower is mainly used in areas of the boiler where the flue gas temperature is relatively low (usually ≤ 600℃), the accumulation of ash is severe, and the space is limited. Common application locations include:

• Economizer section: The economizer tubes in the boiler’s tail flue, prone to ash accumulation and with limited space, the semi-extendable design can effectively cover.
• Tube-type air preheater: The interior of the tube box or the tube bundle area, suitable for insertion for cleaning from one end.
• Convection tubes / evaporator: Medium-low temperature convection heating surfaces, where ash accumulation affects heat transfer efficiency.
• Middle-low temperature sections of the waste heat boiler: Such as the evaporation section and economizer section of the waste heat boiler.
• The low-temperature sections of some boilers’ reheaters / superheaters: When the flue gas temperature is not high and the long-extendable installation space is insufficient, it will also be selected.

The semi-extendable sootblower is a derivative product of the long-extendable type. Its core feature is that the sootblowing gun tube is lengthened, and a part of it is always placed inside the furnace. The tube body is equipped with a series of nozzles, and during the rotation and extension process, it can achieve a blow-off coverage that is twice or even greater than that of the long-extendable type. Because the gun tube remains in the area where the flue gas temperature is generally ≤ 600℃ (such as economizers, tube-type air preheaters, convection tubes, etc.) for a long time, it will not be burned out. It can achieve the same blow-off effect as the long-extendable type with a smaller installation space and lower investment cost.

Main performance:

。 The blowing medium is mostly steam or compressed air.

。 The travel distance is usually no more than 7.62 meters (with a maximum travel distance of about 13 meters).

。 The advancing and retreating speed is approximately 1.75 meters per minute, and the barrel rotation speed is about 17.5 revolutions per minute.

。 The blowing radius is approximately 1.5 to 2 meters, and the blowing angle is 360 degrees.

。 Motor power: 1.1 to 2 kW.

。 The structure mostly adopts the same transmission and control methods as the long telescopic type, which is stable and easy to maintain.

Mua thiết bị thổi bụi lò hơi chính hãng | Buy Original

Á Đông Group cung cấp thiết bị thổi bụi lò hơi (soot blower) Hubei Delsan chính hãng tại Việt Nam. Liên hệ để được tư vấn, báo giá và hỗ trợ kỹ thuật. / Á Đông Group supplies genuine Hubei Delsan boiler soot blowers in Vietnam — contact us for consultation, quotation and technical support.
