Thiết bị làm nguội xỉ (slag cooler) kiểu tang trống hai đường nước, làm nguội và vận chuyển xỉ đáy lò hơi tầng sôi (CFB) và lò công nghiệp.

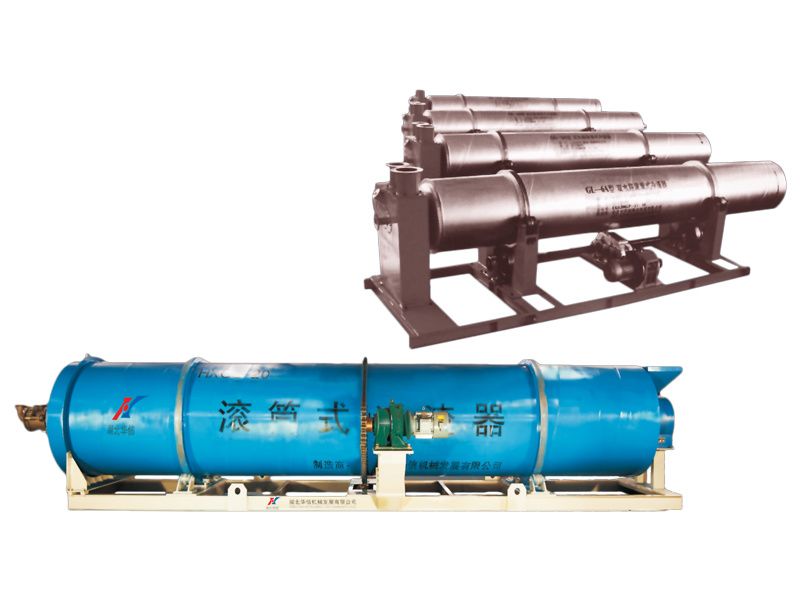

HXGL The HXGL series dual channel drum type slag cooler is a specialized equipment that uses general industrial water or softened water as the heat exchange medium to dry cool and transport high-temperature slag from circulating fluidized bed boilers and fluidized bed boilers. Mainly composed of spiral blades, inner and outer sleeves, feeding and exhaust devices, water inlet and outlet devices, transmission devices, and bases. When the slag cooler is working, the drum is driven by a transmission device to rotate. The high-temperature slag discharged by the boiler is guided forward by a hollow spiral blade with cooling water, while another cooling water passes through the interlayer of the drum, and the cooling air also passes in the opposite direction inside the drum, allowing the high-temperature slag to cool quickly. The cooling water and cooling air can be reused, thereby improving the thermal efficiency of the boiler and protecting the environment. Công ty TNHH Phát triển Cơ khí Hubei Huaxin chuyên thiết kế, phát triển, sản xuất, chế tạo và bảo trì các loại máy thổi bụi lò hơi, thiết bị làm nguội xỉ, hệ thống van–đường ống, hệ thống điều khiển công nghiệp và các thiết bị phụ trợ khác. 300MW 600MW 1000MW
HXGL系列双水路滚筒式冷渣器是以一般工业用水或软化水为热交换介质，对循环流化床锅炉和沸腾床锅炉的高温炉渣进行干式冷却和输送的专用设备。主要由螺旋叶片、内外套筒、进料与排风装置、进出水装置、传动装置和底座组成。当冷渣器工作时，滚筒由传动装置驱动旋转，锅炉排除的高温炉渣在有冷却水的空心螺旋叶片导向前进，同时另一路冷却水通过滚筒夹层，冷却风也在滚筒内逆向通过，从而使高温炉渣快速冷却，冷却水和冷却风可再利用，从而提高锅炉热效率和保护环境的作用。 The HXGL series dual channel drum type slag cooler is a specialized equipment that uses general industrial water or softened water as the heat exchange medium to dry cool and transport high-temperature slag from circulating fluidized bed boilers and fluidized bed boilers. Mainly composed of spiral blades, inner and outer sleeves, feeding and exhaust devices, water inlet and outlet devices, transmission devices, and bases. When the slag cooler is working, the drum is driven by a transmission device to rotate. The high-temperature slag discharged by the boiler is guided forward by a hollow spiral blade with cooling water, while another cooling water passes through the interlayer of the drum, and the cooling air also passes in the opposite direction inside the drum, allowing the high-temperature slag to cool quickly. The cooling water and cooling air can be reused, thereby improving the thermal efficiency of the boiler and protecting the environment.
Hubei Huaxin Machinery Development Co., Ltd. specializes in the design, development, production, manufacturing, and maintenance services of various boiler soot blowers, slag coolers, valve piping systems, industrial control systems, and other auxiliary equipment.
公司产品广泛应用于火电、冶金、化工、造纸、垃圾处理、硫化床锅炉及其它余热锅炉。目前公司已是哈锅、上锅 、武锅 、杭锅、锡锅、川锅、济锅、苏源环保、武汉凯迪等的合格分供方。为国内各大锅炉厂配套300MW、600MW及1000MW机组电站锅炉项目。产品业绩遍布全国二十八个省、市、自治区，并出口印度、印尼、越南、泰国、马来西亚等东南亚国家。
Á Đông Group cung cấp thiết bị thổi bụi lò hơi Hubei Huaxin chính hãng tại Việt Nam — tư vấn, báo giá và hỗ trợ kỹ thuật.
