Hệ thống đường ống thổi bụi cấp/phân phối hơi–khí nén cho các máy thổi bụi, gồm van, ống và phụ kiện chịu nhiệt–áp.

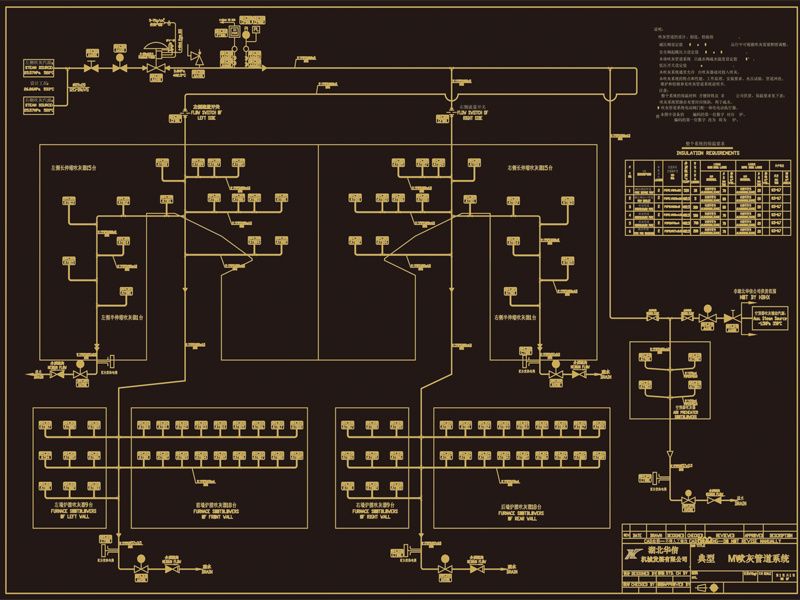

． The soot blowing pipeline system is one of the important components of the boiler soot blowing system. The reasonable design of the soot blowing pipeline is reflected in the reasonable coordination with the connecting parts of the soot blower, and the accurate transmission and feedback of temperature and pressure sampling signals to the soot blowing program control cabinet, so that the three subsystems of the soot blower, soot blowing program control, and soot blowing pipeline form an organic whole, thereby achieving the best soot blowing effect. This is of great significance for the safe, economical, and long-term reliable operation of boilers. Our factory is responsible for designing the soot blowing pipeline system for standby large, medium, and small boilers, and can meet the overall requirements of boiler soot blowing. ( ) The soot blowing pipeline system usually refers to all valves, equipment, pipelines, and accessories from the outlet of the boiler’s soot blowing steam source to the drain valve at the bottom of each soot blower and pipeline. Usually includes: electric shut-off valves for main and auxiliary steam sources. Pressure reducing valve, safety valve, drain valve, pressure, temperature, flow measurement device (optional), pipeline fixation, guidance, support and lifting device, etc. 300MV Attachment: Typical 300MV coal-fired boiler soot blowing pipeline system diagram Usually, large power plant boilers use superheater outlet steam sources with higher parameters, which are used as blowing media after being depressurized by the pressure reducing station. Due to the requirement of high superheat of the blowing medium in the rotary air preheater, one or two sets of pressure reducing stations can be configured according to different boiler conditions. Công ty TNHH Phát triển Cơ khí Hubei Huaxin chuyên thiết kế, phát triển, sản xuất, chế tạo và bảo trì các loại máy thổi bụi lò hơi, thiết bị làm nguội xỉ, hệ thống van–đường ống, hệ thống điều khiển công nghiệp và các thiết bị phụ trợ khác.
吹灰管道系统是锅炉吹灰系统的重要组成部分之一。吹灰管道的合理设计，体现在与吹灰器连接件的合理协调，其温度、压力取样等信号向吹灰程控柜的准确传递及反馈，使吹灰器、吹灰程控、吹灰管道三套子系统组成一个有机整体，从而达到最佳吹灰效果。这对于锅炉安全．经济和长期可靠的运行具有重要意义。 The soot blowing pipeline system is one of the important components of the boiler soot blowing system. The reasonable design of the soot blowing pipeline is reflected in the reasonable coordination with the connecting parts of the soot blower, and the accurate transmission and feedback of temperature and pressure sampling signals to the soot blowing program control cabinet, so that the three subsystems of the soot blower, soot blowing program control, and soot blowing pipeline form an organic whole, thereby achieving the best soot blowing effect. This is of great significance for the safe, economical, and long-term reliable operation of boilers. 本厂承担备类大、中、小型锅炉的吹灰管道系统设计并能满足锅炉吹灰的整体要求。 Our factory is responsible for designing the soot blowing pipeline system for standby large, medium, and small boilers, and can meet the overall requirements of boiler soot blowing. 吹灰管道系统通常是指从锅炉吹灰汽源出口开始至每台吹灰器和管道下部疏水阀之间的全部阀门、设备、管道及附件。通常包括：主、辅汽源电动截止阀。减压阀、安全阀、疏水阀、压力、温度、流量测量装置(选用)、管道固定、导向、支吊装置等。 The soot blowing pipeline system usually refers to all valves, equipment, pipelines, and accessories from the outlet of the boiler’s soot blowing steam source to the drain valve at the bottom of each soot blower and pipeline. Usually includes: electric shut-off valves for main and auxiliary steam sources. Pressure reducing valve, safety valve, drain valve, pressure, temperature, flow measurement device (optional), pipeline fixation, guidance, support and lifting device, etc. 附：典型的300MV燃煤锅炉吹灰管道系统图 Attachment: Typical 300MV coal-fired boiler soot blowing pipeline system diagram
通常情况下，大型电站锅炉用参数较高的过热器出口汽源，经减压站减压后作为吹灰介质。由于回转式空气预热器要求吹灰介质有较高的过热度，因此根据锅炉情况不同，配置一套或两套减压站。 Usually, large power plant boilers use superheater outlet steam sources with higher parameters, which are used as blowing media after being depressurized by the pressure reducing station. Due to the requirement of high superheat of the blowing medium in the rotary air preheater, one or two sets of pressure reducing stations can be configured according to different boiler conditions.
Hubei Huaxin Machinery Development Co., Ltd. specializes in the design, development, production, manufacturing, and maintenance services of various boiler soot blowers, slag coolers, valve piping systems, industrial control systems, and other auxiliary equipment.
