Super Heater Sootblower là máy thổi bụi thò dài (Long Retractable) của Zhejiang Lemond, dùng để làm sạch tro/xỉ vùng nhiệt độ cao như bộ quá nhiệt, tái nhiệt. Thiết bị chính hãng, thông số kỹ thuật chi tiết theo bảng dưới đây (giá trị giữ nguyên theo nhà sản xuất).
Thép Cr-Mo hoặc thép đặc biệt phù hợp với điều kiện làm việc của lò hơi
Q: Ưu tiên của bạn so với các doanh nghiệp khác là gì?
| Môi chất thổi bụi | Steam or compressed air |
|---|---|
| Lĩnh vực ứng dụng | boiler superheater, reheater, economizer |
| lance tube material | T91 or 15CrMo |
| Maximum gas temperature | 1300℃ |
| Blowing time | 45-745s |
| Vật liệu ống thổi | Cr-Mo steel or special steel suited for boiler working condition |
| Lượng hơi tiêu thụ | 30-100kg/min |
| Hành trình | 0.3-11m |
| Total weight | 200-770kg |
| Góc thổi | 0°-360° |
| Bán kính thổi hiệu quả | 0.5-4.5m |
| Áp suất thổi khuyến nghị | 0.8-1.5Mpa |
Cr-Mo steel or special steel suited for boiler working condition
Super heater sootblower is the sootblower used in boiler superheater area, as the flue gas temperature is usually very high, up to 1300℃, so we usually design long retractable sootblower. In LEMOND design, PSSL long retractable sootblower is often used for super heater area, the travel is usually within 8 meters. For supercritial boiler unit, usually the travel is very long up to 20 meters, in this case, another type long retractable sootblower RKSL and RLSL will be designed.

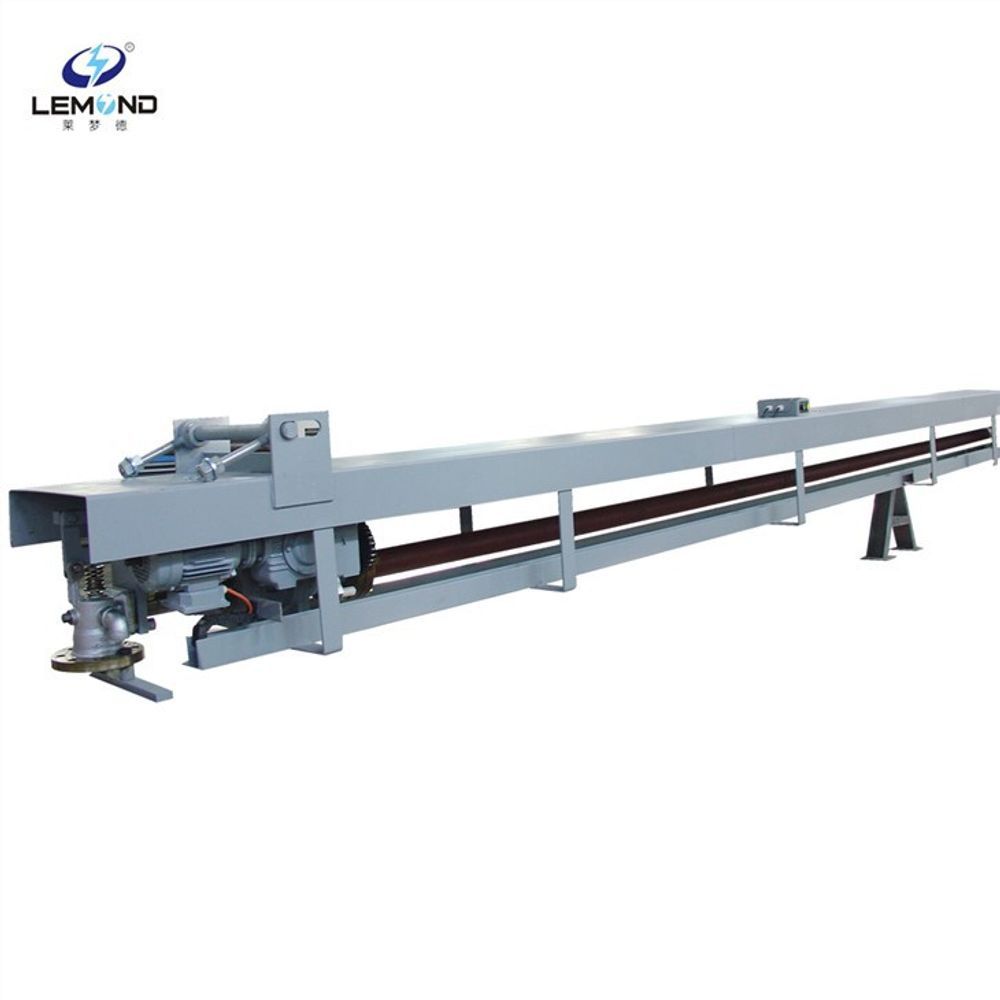

Here is the LEMOND PSSl long retractable sootblower, travel=8meters. Export to Russia.
Q: What is your priority compared with other enterprise?
A: We own all kind of mechanical processing equipment, great technical power, complete testing tools, moreover, we can provide competitive price as we are the direct manufacturer.
A: For some parts, we only take 5-10 days, for the whole machine, it usually takes around 30 days in the normal case, if the order is very busy in the schedule, it will be longer.
| Soot blowing medium | Steam or compressed air |
|---|---|
| Application field | boiler superheater, reheater, economizer |
| lance tube material | T91 or 15CrMo |
| Maximum gas temperature | 1300℃ |
| Blowing time | 45-745s |
| Blowing tube material | Cr-Mo steel or special steel suited for boiler working condition |
| Steam consumption | 30-100kg/min |
| Travel distance | 0.3-11m |
| Total weight | 200-770kg |
| Blowing angle | 0°-360° |
| Effective blowing radius | 0.5-4.5m |
| Recommended blowing pressure | 0.8-1.5Mpa |
Á Đông Group cung cấp thiết bị thổi bụi lò hơi Zhejiang Lemond chính hãng tại Việt Nam. Liên hệ để được tư vấn, báo giá và hỗ trợ kỹ thuật.
